Small Instantiation Language: Macros

Macros are the key for designing complex scenes. Macros are object calls that can be inserted any number of times in the final scene, and can also be used for creating other macros. In this version, however, macros cannot be recursive.

Syntax

The simplest form of macro definition equates a symbolic name to an object instance:

• set macroName = className(values...);

The class name can make reference either to a material or any kind of shape. For instance, we can define a macro for golden metals:

set goldenMetal = metal(gold, 0.5, 0.2);

SILLY also supports parameterized macros. This macro defines a sphere with unit radius and an arbitrary material:

set ball(center, stuff) = sphere(center, 1.0, stuff);

We can use these macros in the scene. This is a unit sphere centered at the origin of coordinates, made of a golden metal:

ball([0, 0, 0], goldenMetal);

Macros cannot be recursive, neither directly or indirectly. They also need to be defined before use.

Predefined macros

There are two predefined macros in SILLY:

• pi
  The pi macro evaluates to the mathematical constant with this name.

• clock
  The clock macro evaluates to var(0, 1). This is a range expression, and its value depends on the externally determined clock value.

Example

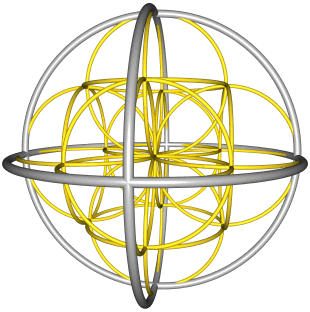

This script defines a wireframe model resembling a sphere:

objects
    set gld = metal(gold, 0.12, 0.02, 0.9, 0.4, 10);
    set slv = metal(silver, 0.06, 0.00, 0.9, 0.6, 10);

    set base(p, r0, r1, m) = union(
        torus(p, r0, r1, m),
        rotate(90, 0, 0, torus(p, r0, r1, m)),
        rotate(0, 0, 90, torus(p, r0, r1, m)));

    base([0,0,0], 4, 0.1, slv);
    translate(-2, 0, 0, base([0,0,0], 2, 0.05, gld));
    translate(+2, 0, 0, base([0,0,0], 2, 0.05, gld));
    translate(0, -2, 0, base([0,0,0], 2, 0.05, gld));
    translate(0, +2, 0, base([0,0,0], 2, 0.05, gld));
    translate(0, 0, -2, base([0,0,0], 2, 0.05, gld));
    translate(0, 0, +2, base([0,0,0], 2, 0.05, gld));
end.

This script can be simplified substituting Translate by move, and Rotate by spin:

objects
    set gld = metal(gold, 0.12, 0.02, 0.9, 0.4, 10);
    set slv = metal(silver, 0.06, 0.00, 0.9, 0.6, 10);

    set base(p, r0, r1, m) = union(
        torus(p, r0, r1, m),
        torus(p, r0, r1, m) spin 90^x,
        torus(p, r0, r1, m) spin 90^z);

    base(^0, 4, 0.1, slv);
    base(^0, 2, 0.05, gld) move -2^x;
    base(^0, 2, 0.05, gld) move +2^x;
    base(^0, 2, 0.05, gld) move -2^y;
    base(^0, 2, 0.05, gld) move +2^y;
    base(^0, 2, 0.05, gld) move -2^z;
    base(^0, 2, 0.05, gld) move +2^z;
end.

We can keep simplifying the script. This time, we can write a macro to make a double copy of a shape:

    set DUP(object, distance) = union(
        object move -distance,
        object move +distance);

Now, the scene can be described this way:

    base(^0, 4, 0.1, slv);
    DUP(base(^0, 2, 0.05, gld), 2^x);
    DUP(base(^0, 2, 0.05, gld), 2^y);
    DUP(base(^0, 2, 0.05, gld), 2^z);
